Thursday, August 28, 2008

Mixed reality systems for technical maintenance and gaze-controlled interaction (Gustafsson et al)

To follow up on the wearable display with an integrated eye tracker one possible application is in the domain of mixed reality. This allows for interfaces to be projected on top of a video stream (ie. the "world view") Thus blending the physical and virtual world. The paper below investigates how this could be used to assist technical maintenance of advanced systems such as fighter jets. It´s an early prototype but the field is very promising especially when an eye tracker is involved.


Abstract:
"The purpose of this project is to build up knowledge about how future Mixed Reality (MR) systems should be designed concerning technical solutions, aspects of Human-Machine-Interaction (HMI) and logistics. The report describes the work performed in phase2. Regarding hardware a hand-held MR-unit, a wearable MR-system and a gaze-controlled MR-unit have been developed. The work regarding software has continued with the same software architecture and MR-tool as in the former phase 1. A number of improvements, extensions and minor changes have been conducted as well as a general update. The work also includes experiments with two test case applications, "Turn-Round af Gripen (JAS) and "Starting Up Diathermy Apparatus" Comprehensive literature searches and surveys of knowledge of HMI aspects have been conducted, especially regarding gaze-controlled interaction. The report also includes a brief overview of ohter projects withing the area of Mixed Reality."
  • Gustafsson, T., Carleberg, P., Svensson, P., Nilsson, S., Le Duc, M., Sivertun, Å., Mixed Reality Systems for Technical Maintenance and Gaze-Controlled Interaction. Progress Report Phase 2 to FMV., 2005. Download paper as PDF

Sunday, August 24, 2008

Nokia Research: Near Eye Display with integrated eye tracker

During my week in Tampere I had the opportunity to visit Nokia Research to get a hands on with a prototype that integrates a head mounted display with an eye tracker. Due to a NDA I am unable to reveal the contents of the discussion but it does work and it was a very neat experience with great potential. Would love to see a commercial application down the road. For more information there is a paper available:
Hands-On with the Nokia NED w/ integrated eye tracker

Paper abstract:
"Near-to-Eye Display (NED) offers a big screen experience to the user anywhere, anytime. It provides a way to perceive a larger image than the physical device itself is. Commercially available NEDs tend to be quite bulky and uncomfortable to wear. However, by using very thin plastic light guides with diffractive structures on the surfaces, many of the known deficiencies can be notably reduced. These Exit Pupil Expander (EPE) light guides enable a thin, light, user friendly and high performing see-through NED, which we have demonstrated. To be able to interact with the displayed UI efficiently, we have also integrated a video-based gaze tracker into the NED. The narrow light beam of an infrared light source is divided and expanded inside the same EPEs to produce wide collimated beams out from the EPE towards the eyes. Miniature video camera images the cornea and eye gaze direction is accurately calculated by locating the pupil and the glints of the infrared beams. After a simple and robust per-user calibration, the data from the highly integrated gaze tracker reflects the user focus point in the displayed image which can be used as an input device for the NED system. Realizable applications go from eye typing to playing games, and far beyond."

GaCIT in Tampere, day 5.

On Friday, the last day of GaCIT, Ed Cutrell from Microsoft Research gave a talk concerning usability evaluation and how eye tracking can give a deliver a deeper understanding. While it has been somewhat abused to convince the managment with pretty pictures of heat maps it adds value to a design inquiry as an additional source of behavioral evidence. Careful consideration of the experiment design is needed. Sometimes studies in the lab lacks the ecological validity of the real in-the-field research, more on this further on.

The ability to manipulate independent variables, enforce consistency and control are important concerns. For example running a web site test against the site online may produce faulty data since the content of the site may change for each visit. This is referred to as the stimuli sensitivity and increses in-between power since all subjects are exposed to exactly the same stimuli. Another issue is the task sensitivity. The task must reflect what the results are supposed to illustrate (ie. reading a text does not contain elements of manipulation. People are in general very task oriented, instructed to read they will ignore certain elements (eg. banners etc.)

A couple of real world examples including the Fluent UI (Office 2008), Phlat and Search Engine Results Pages (SERP) were introduced.

The Fluent UI is the new interface used in Office 2008. It resembles a big change compared with the traditional Office interface. The Fluent UI is task and context dependent compared to the rather static traditional setup of menubars and icons cluttering the screen.

Example of the Fluent UI (Microsoft, 2008)

The use of eye trackers illustrated how users interacted with the interface. This may not always occur in the manner the designer intended. Visualization of eye movement gives developers and designers a lot of instant aha-experiences.

At Microsoft it is common to work around personas in multiple categories. These are abstract representations of user groups that help to illustrate the lifes and needs for "typical" users. For example, Nicolas, is a tech-savvy IT professional while Jennifer is a young hip girl who spend a lot of time on YouTube or hang around town with her shiny iPod (err.. Zune that is)

More information on the use of personas as a design method:
  • J. Grudin, J. Pruitt (2002) Personas, Participatory Design and Product Development: An Infrastructure for Engagement (Microsoft Research) Download as Word doc.

  • J. Grudin (2006) Why Personas Work: The Psychological Evidence (Microsoft Research) Download as Word doc.
Moving on, the Phlat projects aims at solving the issues surrounding navigating and searching large amounts of personal data, sometimes up to 50GB of data. Eye trackers were used to evaluate the users behavior agains the interface. Since the information managed using the application is personal there were several privacy issues. To copy all the information onto the computers in the lab was not a feasible solution. Instead the participants used the Remote Desktop functionality which allowed the lab computers to be hooked up with the participants personal computers. The eye trackers then recorded the local monitor which displayed the remote computer screen. This gives much higher ecological validity since the information used has personal/affective meaning.

Phlat - interface for personal information navigation and search (Microsoft)
The use of eye trackers for evaluating websites has been performed in several projects. Such as J. Nielsens F-Shaped Pattern For Reading Web Content and Enquiros Search Engine Results (Golden Triangle). Ed Cutrell decided to investigate how search engine results pages are viewed and what strategies users had. The results gave some interesting insight in how the decision making process goes and which links are see vs clicked. Much of the remaining part of the talk was concerned with the design, execution and results of the study, great stuff!

Further reading:
Unfortunately I had to catch a flight back home in the afternoon so I missed Howell Istance last talk. However, I´ll get a new opportunity to hear one of his excellent presentation in a weeks time at COGAIN2008.

GaCIT 2008. B. Velichovsky associated litterature

Experimental effects, e.g. distractor effect
  • Pannasch, S., Dornhoefer, S.M., Unema, P.J.A. & Velichkovsky, B.M. (2001). The omnipresent prolongation of visual fixations: saccades are inhibited by changes in situation and in subject's activity. Vision Research. 41(25-26), 3345-51. Download Full Article [PDF]
  • Velichkovsky, B.M., Dornhoefer, S.M. , Kopf, M., Helmert, J. & Joos, M. (2002). Change detection and occlusion modes in static and dynamic road-traffic scenarios. Transportation Research, Part F. 5(2), 99-109. Download Full Article [PDF]
Ambient vs. Focal
  • Velichkovsky, B.M., Rothert, A., Kopf, M., Dornhoefer, S.M. & Joos, M. (2002). Towards an express diagnostics for level of processing and hazard perception. Transportation Research, Part F. 5(2), 145-156. Download Full Article [PDF]
  • Unema, P., Pannasch, S., Joos, M. & Velichkovsky, B.M. (2005). Time-course of information processing during scene perception: The relationship between saccade amplitude and fixation duration. Visual Cognition, 12(3), 473-494. Download Full Article [PDF]
  • Velichkovsky, B.M., Joos, M., Helmert, J.R., & Pannasch, S. (2005). Two visual systems and their eye movements: evidence from static and dynamic scene perception. CogSci 2005: Proceedings of the XXVII Conference of the Cognitive Science Society. July 21-23 Stresa, Italy, pp. 2283-2288. Download Full Article [PDF]
Levels of processing
  • Velichkovsky, B.M. (2005). Modularity of cognitive organization: Why it is so appealing and why it is wrong. In W. Callebaut & D. Rasskin-Gutman (Eds.), Modularity: Understanding the development and evolution of natural complex systems. Cambridge, MA: MIT Press.
  • Graupner, S. T., Velichkovsky, B. M., Pannasch, S., & Marx, J. (2007). Surprise, surprise: Two distinct components in the visually evoked distractor effect. Psychophysiology, 44(2), 251-261. Download Full Article [PDF]
  • Velichkovsky, B.M. (2007) Towards an Evolutionary Framework for Human Cognitive Neuroscience. Theoretical Biology, 2(1), 3-6. Download Full Article [PDF]
  • Velichkovsky,B.M. (2002). Heterarchy of cognition: The depths and the highs of a framework for memory research. Memory, 10(5/6), 405-419 (Special Issue on Levels-of-Processing-Approach).
Website: www.applied-cognition.org

Saturday, August 23, 2008

GaCIT in Tampere, day 4.

A follow up the hands-on session was held by Andrew Duchowski. This time to investigate eye movements on moving stimulo (ie. video clips) A classic experiment from the Cognitive Science domain was used as stimuli (the umbrella woman) It serves as a very nice example on how to use eye trackers in a practical experiment.



The task objective is to either count the passes of the white or black team. The experiment illustrates the inattentional blindness which causes certain objects in the movie to go unnoticed.
More information on the phenomenon can be found in the following papers:
  • Becklen, Robert and Cervone, Daniel (1983) Selective looking and the noticing of unexpected events. Memory and Cognition, 11, 601-608.
  • Simons, Daniel J. and Chabris, Christopher F. (1999). Gorillas in our midst: sustained inattentional blindness for dynamic events, Perception, 28, pp.1059-1074.
  • Rensink, Ronald A. (2000). When Good Observers Go Bad: Change Blindness, Inattentional Blindness, and Visual Experience, Psyche, 6(09), August 2000. Commentary on: A. Mack and I. Rock (1998) Inattentional Blindness. MIT Press.
Defining areas of interest (AOI) often creates the tedious process of keyframing where the object has to be defined in each frame of the video. Automatic matchmoving/rotoscoping software does exists but it often does not perform a perfect segmentation of the moving objects. Dixon et al. have performed research in this area, more information can be found in the following papers:
The afternoon was used to participant presentations which covered a rather wide range of topics, visual cognition, expert vs novices gaze patterns, gaze interaction, HCI and usability research.

GaCIT in Tampere, day 3.

In the morning Howell Istance of De Montford University, currently at University of Tampere, gave a very intersting lecture concerning gaze interaction, it was divided into three parts 1) games 2) mobile devices 3) stereoscopic displays

Games
This is an area for gaze interaction which have a high potential and since the gaming industry has grown to be a hugh industy it may help to make eye trackers accessible/affordable. The development would be benificial for users with motor impairments. A couple of examples for implementations were then introduced. The first one was a first person shoother running on a XBOX360:
The experimental setup evaluation contained 10 repeated trials to look at learning (6 subjects). Three different configurations were used 1) gamepad controller moving and aiming (no gaze) 2) gamepad controller moving and gaze aiming and 3) gamepad controller moving forward only, gaze aiming and steering of the movement.
Results:

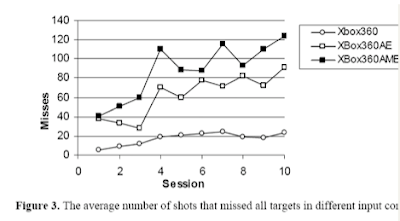

However, twice as many shots were fired that missed in the gaze condition which can be described as a "machine gun" approach. Noteworthy is that no filtering was applied to the gaze position.

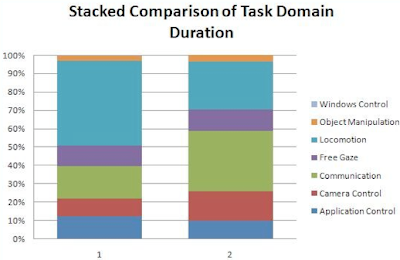

Howell have conducted a analysis of common tasks in gaming, below is a representation of the amount of actions in the Guild Wars game. The two bars indicate 1) novices and 2) experienced users.

Controlling all of these different actions requires switching of task mode. This is very challenging considering only on input modality (gaze) with no method of "clicking".

There are several ways a gaze interface can be constructed. From a bottom up approach. First the position of gaze can be used to emulate the mouse cursor (on a system level) Second, a transparent overlay can be placed on top of the application. Third, a specific gaze interface can be developed (which has been my own approach) This requires a modification of the original application which is not always possible.

The Snap/Clutch interaction method developed by Stephen Vickers who is working with Howell operates on the system level to emulate the mouse. This allows for specific gaze gestures to be interpretated which is used to switch mode. For example a quick glace to the left of the screen will activate a left mouse button click mode. When a eye fixation is detected in a specific region a left mouse click will be issued to that area.

When this is applied to games such as World of Warcraft (demo) specific regions of the screen can be used to issue movement actions towards that direction. The image below illustrates these regions overlaid on the screen. When a fixation is issued in the A region an action to move towards that direction is issued to the game it self.

Stephen Vickers gaze driven World of Warcraft interface.

After lunch we had a hands-on session with the Snap/Clutch interaction method where eight Tobii eye trackers were used for a round multiplayer of WoW! Very different from a traditional mouse/keyboard setup and takes some time to get used to.

  • Istance, H.O.,Bates, R., Hyrskykari, A. and Vickers, S. Snap Clutch, a Moded Approach to Solving the Midas Touch Problem. Proceedings of the 2008 symposium on Eye Tracking Research & Applications; ETRA 2008. Savannah, GA. 26th-28th March 2008. Download
  • Bates, R., Istance, H.O., and Vickers, S. Gaze Interaction with Virtual On-Line Communities: Levelling the Playing Field for Disabled Users. Proceedings of the 4th Cambridge Workshop on Universal Access and Assistive Technology; CWUAAT 2008. University of Cambridge, 13th-16th April 2008. Download


The second part of the lecture concerned gaze interaction for mobile phones. This allows for ubiquitous computing where the eye tracker is integrated with a wearable display. As a new field it is surrounded with certain issues (stability, processing power, variation in lightning etc.) but all of which will be solved over time. The big question is what the "killer-application" will be. ( entertainment?) A researcher from Nokia attended the lecture and introduced a prototype system. Luckily I had the chance to visit their research department the following day to get a hands-on with their head mounted display with a integrated eye tracker (more on this in another post)

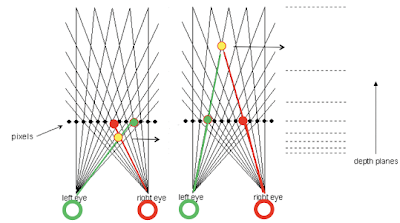

The third part was about stereoscopic displays which adds a third dimension (depth) to the traditional X and Y axis. There are several projects around the world working towards making this everyday reality. However, tracking the depth of gaze fixation is limited. The vergence (as seen by the distance between both pupils) eye movements are hard to measure when the distance to objects move above two meters.

Calculating convergence angles
d = 100 cm tan θ = 3.3 / 100; θ = 1.89 deg.
d = 200 cm tan θ = 3.3 / 200; θ = 0.96 deg.


Related papers on stereoscopic eye tracking:
The afternoon was spent with a guided tour around Tampere followed by a splendid dinner at a "viking" themed restaurant.

GaCIT in Tampere, day 2.

The second of GaCIT in Tampere started off with a hands-on lab by Andrew Duchowski. This session followed up on the introduction the day before. The software of choice was Tobii Studio which is an integrated solution for displaying stimuli and visualization of eye movements (scanpaths, heat-maps etc.) Multiple types of stimuli can be used, including text, images, video, websites etc.

The "experiment" consisted of two ads shown below. The hypothesis to be investigated was that the direction of gaze would attract more attention towards the text compared to the picture where the baby is facing the camera.












After calibrating the user the stimulus is observed for a specific amout of time. When the recording has completed a replay of the eye movements can be visually overlaid ontop of the stimuli. Furthermore, several recordings can be incorporated into one clip. Indeed the results indicate support for the hypothesis. Simply put, faces attract attention and the direction of gaze guides it further.

After lunch Boris Velichkovsky gave a lecture on cognitive technologies. After a quick recap of the talk the day before about the visual system the NBIC report was introduced. This concerns the converging technologies of Nano-, Bio-, Information Technology and Cognitive Science.

Notable advances in these fields contain the Z3 computer (Infotech, 1941), DNA (Bio, 1953), Computed Tomography scan (Nano, 1972) and Short Term Memory (CogSci, 1968) All of which has dramtically improved human understanding and capabilities.

Another interesting topic concerned the superior visual recognition skills humans have. Research have demonstrated that we are able to recognize up to 2000 photos after two weeks with a 90% accuracy. Obviously the visual system is our strongest sense, however much of our computer interaction as a whole is driven by a one way information flow. Taking the advaces in
bi-directional OLED microdisplays in to account the field of augmented reality have a bright future. These devices act as both camera and displaying information at the same time. Add an eye tracker to the device and we have some really intresting opportunities.

Boris also discussed the research of Jaak Panksepp concerning the basic emotional systems in the mammals. (emo-systems, anatomical areas and neurotransmitters for modulation)


To sum up the second day was diverse in topics but non the less interesting and demonstrates the diversity of knowledge and skills needed for todays researchers.

Tuesday, August 19, 2008

GaCIT in Tampere, day 1.

The first day of the summer school on gaze, communication and interaction technology (GACIT, pronounced gaze-it) were started of by a talk with Boris Velichkovsky. The topic was visual cognition, eye movement and attention. These are some of the notes I made.

Some basic findings of the visual system were introduced. In general, the visual system is divided into two pathways, the dorsal and ventral system. The dorsal goes from the striate cortex (back of the brain) and upwards (towards the posterior parietal). This pathway of visual information concerns the spatial arrangement of objects in our environment. Hence, it is commonly termed the "where" pathway. The other visual pathway goes towards the temporal lobes (just above your ears) and concerns the shape and identification of specific objects, this is the "what" pathway. The ambient system responds early (0-250ms.) after which the focal system takes over.

These two systems are represented by the focal (what) and ambient (where) attention systems. The ambient system has a overall crude but fast response in lower luminance, the focal attention system works the opposite with fine, but slow, spatial resolution. Additional, the talk covered the cognitive models of attention such as Posner, Broadbent etc. (see attention on Wikipedia)

A great deal of the talk concerned the freezing effect (inhibition of saccades and a prolonged fixation) which can to some extent be predicted. The onset of a dangerous "event" can be seen before the acctual response (the prolonged fixation) Just before the fixation (500ms) the predicition can be made with a 95% success. The inhibition comes in two waves where the first one is issued by the affective repsonse of the amygdala (after 80 ms.) which acts on the superior colliculus to inihibit near saccades. A habituating effect on this affective response can be seen where the second wave of inhitition (+170ms.) becomes less apperent, the initial response is however unaffected.

While driving a car and talking on the phone the lack of attention leads to eye movements with shorter fixation durations. This gives an approximated spatial localization of objects. It is the combination of a) duration of the fixation and b) the surrounding saccades that determines the quality of recognition. A short fixation followed by a long subsequent saccade leads to low recognition results. A short fixation followed by a short saccade gives higher recognition scores. A long fixation followed by either short or long saccades leads to equally high recognition results.

Furthermore, a short saccade within the parafoveal region leads to a high level of neural activity (EEG) after 90ms. This differs from long saccades which gives no noticable variance in cortical activity (compared to the base line)

However, despite the classification into two major visual systems, the attentional system can be divided into 4-6 layers of organization. Hence there is no singel point of attention. They have developed during the evolution of the mind to support various cognitive demands.

For example, the role of emotional respones in social communication can be seen with the strong response to facial expressions. Studies have shown that male responds extremely fast to face-to-face images of other males expressing aggressive facial gestures. This low level response happens much faster that our conscious awareness (as low as 80ms. if I recall correctly) Additionally, the eyes are much faster than we can consciously comprehend, as we are not aware of all the eye movements our eyes perform.

In the afternoon Andrew Duchowski from Clemson University gave a talk about eye tracking and eye movement analysis. Various historical apparatus and techniques were introduced (such as infrared corneal reflection) Followed by a research methodology and guidelines for conducting research. A pratical example of a study conducted by Mr. Nalangula at Clemson was described. This compared expert vs. novices viewing of errornous circuit boards. Results indicate that the experts scanpath can improve the results of the novices (ie. detecting more errors) than those who received no training. A few guidelines on how to use visualization were shown (clusters, heatmaps etc.)

The day ended with a nice dinner and a traditional Finnish smoke-sauna followed by a swim in the lake. Thanks goes to Uni. Tampere UCIT group for my best sauna experience to this date.
